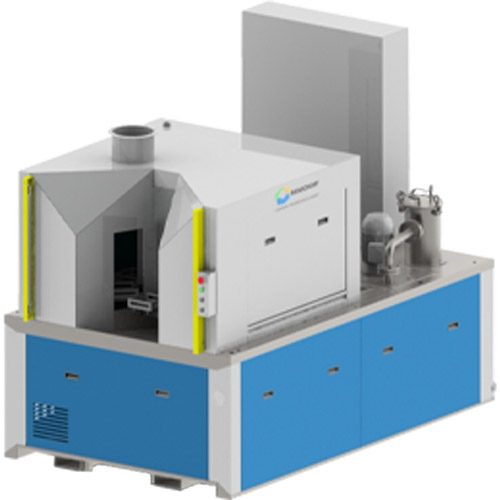

The Return to Load, a member of our Cell-U-Clean line of parts washers, is an excellent cabinet return to operator washer for parts up to 40 Lbs. where floor space comes at a premium. This spray washer was designed as a high-capacity solution with low cost, low energy usage. The RTL platform comes standard as a wash blowoff unit but can be configured with an additional liquid stage when rinsing or rust protection application is required.
Design Specs
| Cleaning Sequence: | Wash and Compressed Air Blowoff |
| Process Type: | Single part flow |
| Production: | Up to 120 PPH |
| Part Orientation: | Directly on Rotary Table or in Custom Fixture |
| Max Work Envelope: | 6” OAL X 6” OAW X 12” OAH |
| Method of Loading / Unloading: | Manual or Automatic via Robot |
| Footprint: | 8’ Length x 5’ Wide x 6’ 8” High |
| Cleaning Mechanisms: | Spray |
| Drying Mechanisms: | Compressed Air Jets (Optional High Velocity Dryer) |
| Controls: | Siemens Programmable Controller and HMI Screen |
Typical Applications:
- Gears
- Point of Use Cleaning
Optional Equipment:
- Pro-Sep Oil Recovery Unit
- High Pressure Blow-off Stage
- Blowoff Heater
- Custom Part Fixtures
